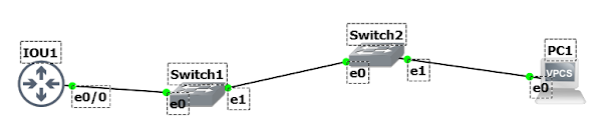

Lab 4. RSPAN ( Remote SPAN)

SW 1

SW-1(config)#do show run | i

monitor monitor session 1

source vlan 10

monitor session 1 destination interface Et0/1

SW-1(config)#no monitor session 1 source vlan 10

SW-1(config)#no monitor session 1 destination interface Et0/1

Kita tambah vlan 100

SW 1

SW-1#conf t

Enter configuration commands, one per line. End with CNTL/Z.

SW-1(config)#vlan 100

SW-1(config-vlan)#name RSPAN

SW-1(config-vlan)#exit

SW-1(config)#interface e0/1

SW-1(config-if)#switchport trunk encapsulation dot1q

SW-1(config-if)#switchport mode trunk

SW-1(config-if)#exit

SW-1(config)#monitor session 1 source vlan 10

SW-1(config)#monitor session 1 destination remote vlan 100

SW 2

SW-2(config)#vlan 10

SW-2(config-vlan)#name PC

SW-2(config-vlan)#interface e0/1

SW-2(config-if)#switchport mode access

SW-2(config-if)#switchport access vlan 10

SW-2(config)#vlan 100

SW-2(config-vlan)#name RSPAN

SW-2(config-vlan)#monitor session 1 destination interface e0/1

SW-2(config)#monitor session 1 source remote vlan 100

Kita tes ping ke R1

SW 1

SW-1#ping 192.168.10.1

source vlan 10

Type escape sequence to

abort.

Sending 5, 100-byte ICMP Echos to 192.168.10.1, timeout is 2

seconds: Packet sent with a source address of 192.168.10.2

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 3/8/12 ms
